Axial SCX10 III Coyote

Comp Ready Brushed Rock Crawler - Coyote 4x4

The Axial SCX10 III Coyote 1/10 RTR 4WD Electric Rock Crawler is purpose built to tackle the roughest terrain right out of the box. With high-clearance links, portal axles, and a specially trimmed body, it flexes to the max and keeps your adventure going. Whether you're just getting started in the world of crawling or you're an expert looking for a "do it all" rig, the Coyote delivers.

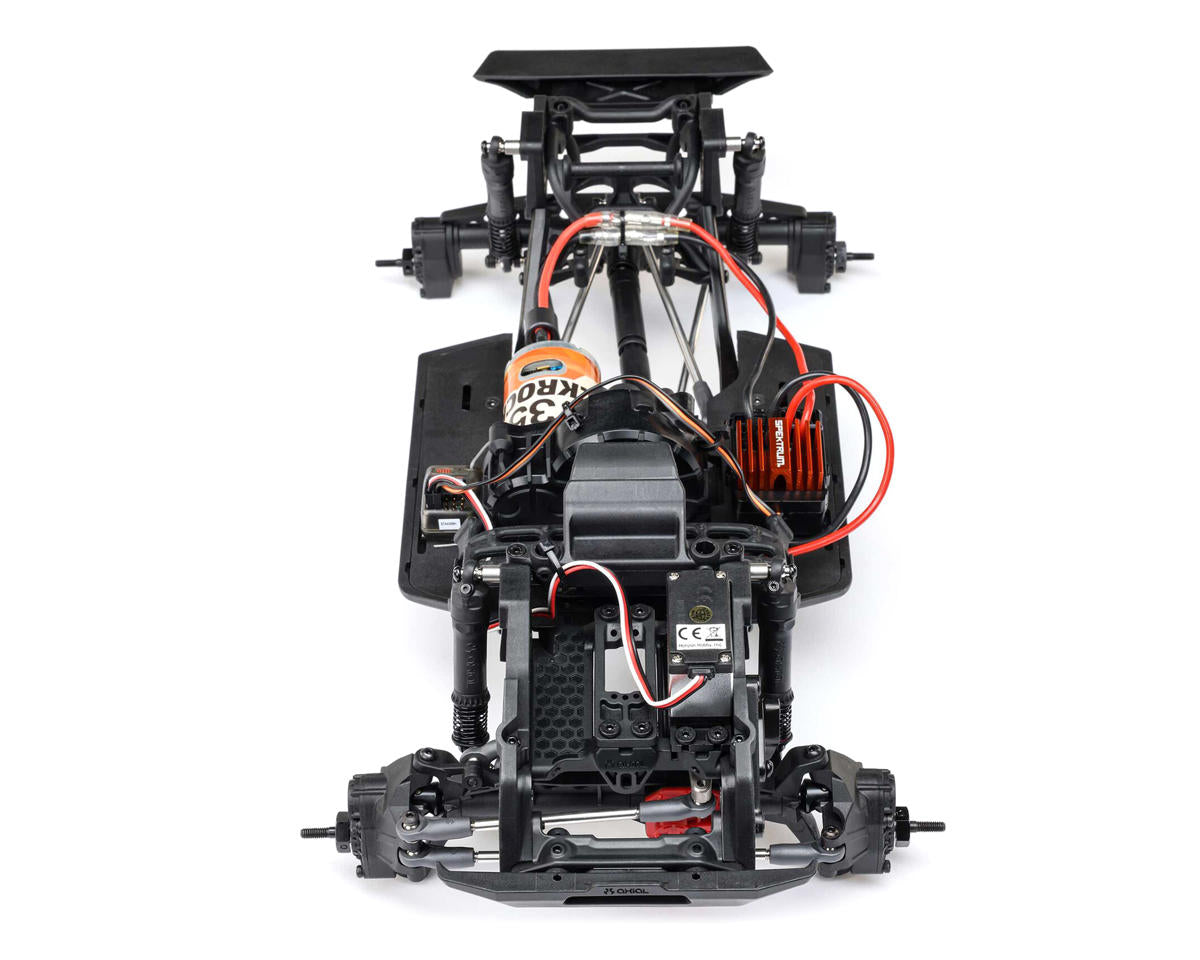

Chassis & Body

Built on the proven, realistic Axial SCX10 III platform with a one-piece steel C-channel chassis that reduces frame flexing and increases suspension precision. The factory-painted Pro-Line Coyote polycarbonate body mounts without body clips and removes easily for chassis access, while its contoured shape slips through obstacles and allows ample tire clearance and suspension articulation.

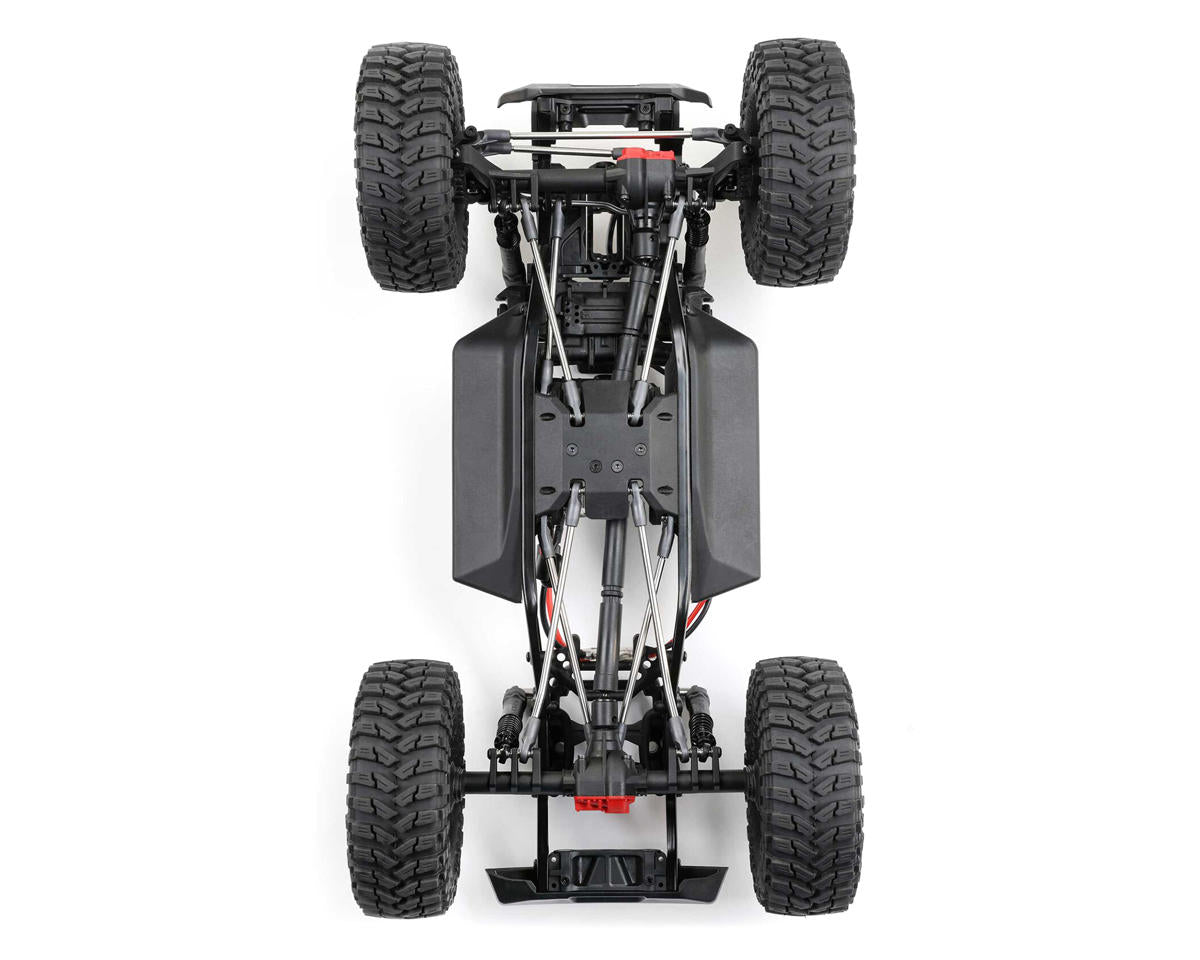

Suspension & Drivetrain

Competition-style composite smooth body shocks provide smooth, predictable handling over any terrain. The multi-link, solid axle suspension features 6mm stainless steel links and all-metal pivot balls for off-road durability. AR45P portal axles increase ground clearance at the differential, and overdrive gears in the front axle improve climbing performance and maneuverability.

Electronics

Factory-installed brushed power system with a 35T Axial 540 motor and waterproof Spektrum 40A ESC. A metal geared Spektrum S664 servo delivers strong, dependable steering. The included Spektrum SLT2 transmitter features throttle limiting (50% or 75%) to help new drivers build confidence on the trails.

Features

• Clipless body mounting system
• Durable LCXU transmission
• Overdrive gears in the front axle
• Updated shock tower
• SCX10 III one-piece steel C-channel chassis
• High-clearance AR45P portal axles
• All-metal gears
• Factory-painted Pro-Line Coyote body
• Full ball bearings
• Ready-to-run

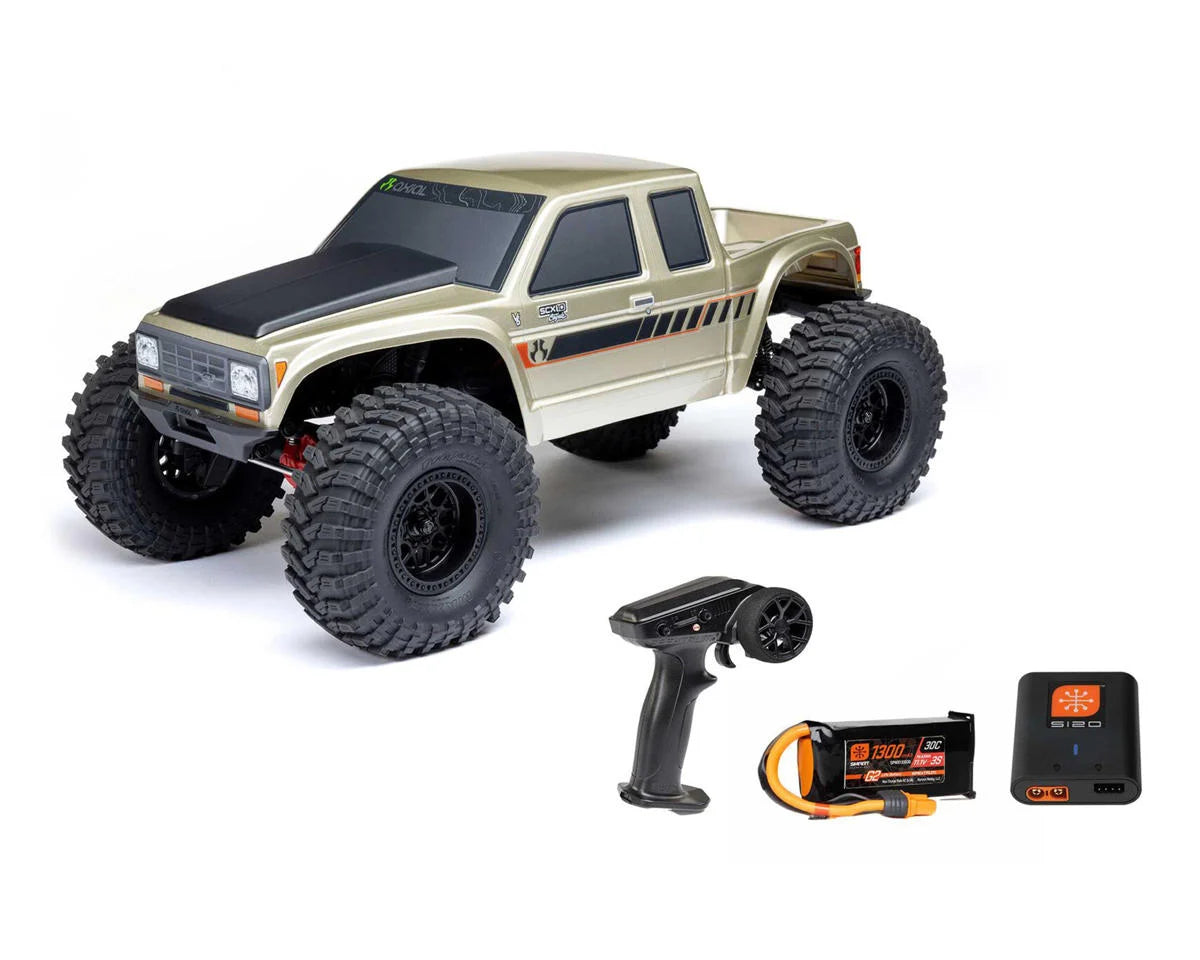

In the Box

• Axial SCX10 III Coyote 1/10 Scale 4X4 RTR
• Axial 35T 540 Brushed Motor
• Spektrum SLT2 2-Channel SLT Radio
• Spektrum SR515 DSMR 5-Channel Receiver
• Spektrum S664 Waterproof Metal Gear 25T Servo
• Spektrum 40A Waterproof Brushed ESC
• Spektrum S120 USB-C Smart Charger 1x20W (SPMXC1020)
• Spektrum 11.1V 1300mAh 3S 30C Smart G2 LiPo Battery (SPMX133S30)
• AA Transmitter Batteries
• Instruction Manual

Specifications

• Scale: 1:10
• Drive: 4WD
• Power Source: 2S–3S LiPo
• Length: 17.5 in (445 mm)
• Wheelbase: 12.3 in (312 mm)
• Width: 9.25 in (235 mm)
• Height: 7.75 in (197 mm)
• Weight: 83.95 oz (2380 g)
• Assembly Level: RTR (Ready-to-Run)
