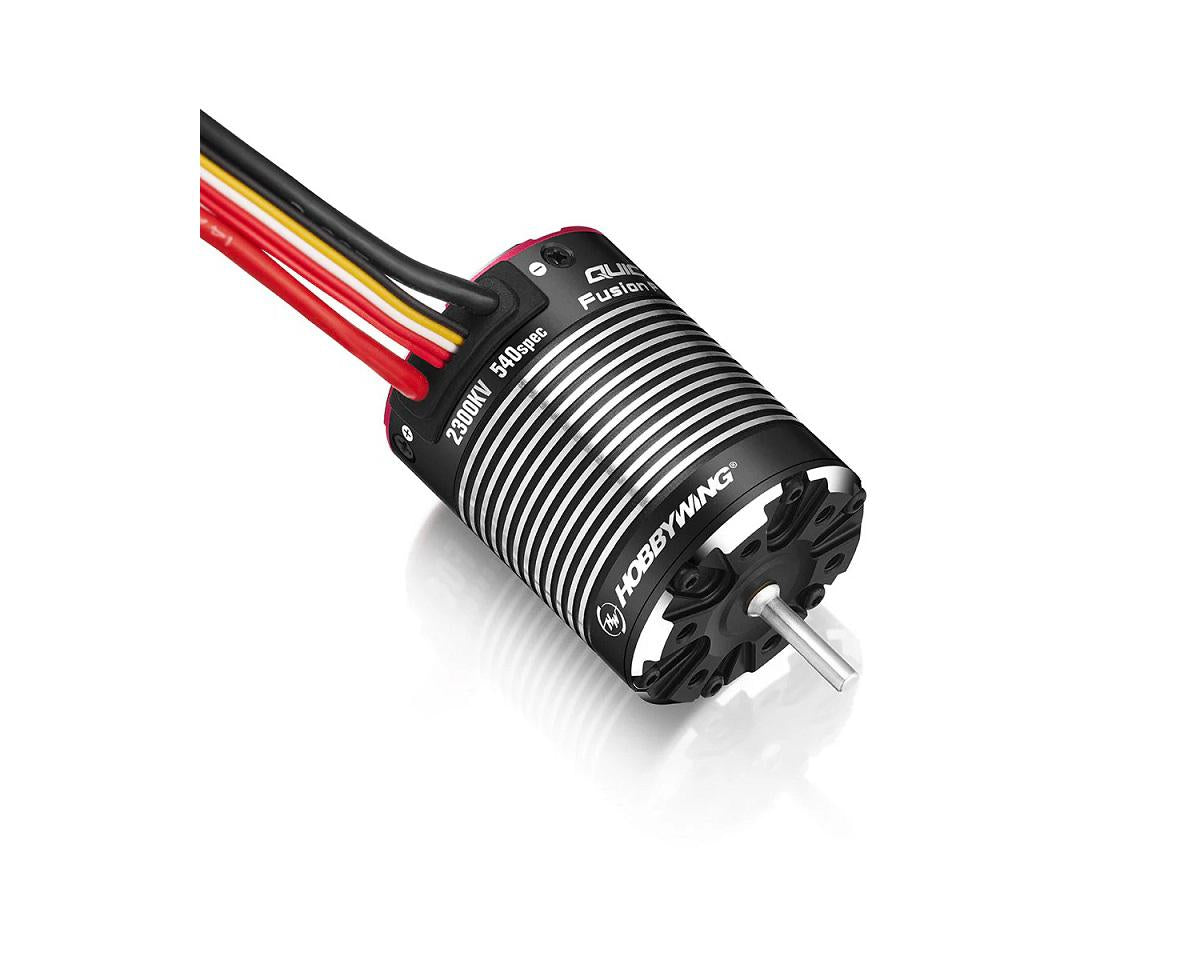

Hobbywing QuicRun Fusion Pro Elite FOC 2-in-1 ESC & Motor System (2300Kv)

Hobbywing QuicRun Fusion Pro Elite FOC 2-in-1 ESC & Motor System (2300Kv)

The Hobbywing QuicRun Fusion Pro Elite FOC 2-in-1 ESC & Motor System combines powerful performance, compact design, and advanced control into one streamlined package for 1/10-scale crawlers. Measuring just 48.5mm in length, it's smaller than previous Fusion Pro models and fits easily into most crawler chassis, allowing for clean and organized wiring. Built with IP67-rated protection, this system performs reliably in all-weather conditions—whether you're tackling rocky trails, muddy streams, or sandy climbs.

Ultra-Compact Design

The Fusion Pro Elite features a shortened, integrated design that simplifies installation and reduces clutter. At 9.5mm shorter than the Pro Standard version and 1.3mm shorter than the AXE 540, it provides more space in the vehicle while maintaining a clean, streamlined wiring layout. This compact footprint allows for better component placement, improving balance and overall build aesthetics.

Advanced FOC Performance

Equipped with Field-Oriented Control (FOC) driving mode, the Fusion Pro Elite delivers superior low-speed torque and smooth throttle response, outperforming traditional brushless systems. It offers precise control for technical crawling and provides an enhanced feel often preferred over brushed setups. The system runs quietly and efficiently, minimizing heat buildup and extending your runtime on the trail.

Smart Features and Versatile Control

The Fusion Pro Elite is designed with intelligent torque output and speed closed-loop control for precision in challenging conditions. It includes an adjustable active drag brake for reliable holding power on steep inclines. The built-in switch-mode BEC supports continuous/peak currents up to 5A with adjustable voltages of 6V, 7.4V, or 8.4V, making it ideal for high-torque, high-voltage servos. Real-time parameter adjustments via the transmitter's AUX channel and compatibility with LED and LCD Program Box Pro/G2 ensure fine-tuned performance.

Features

• Ultra-compact 2-in-1 ESC and motor design
• 48.5mm length for easy installation in most 1/10-scale crawlers
• FOC driving mode for strong low-speed torque and precise control
• High efficiency with reduced heat and extended runtime
• IP67-rated waterproof and dustproof construction
• Active drag brake adjustment for reliable incline holding
• Built-in switch-mode BEC with adjustable 6V/7.4V/8.4V output
• Real-time parameter adjustment via transmitter AUX channel
• Multiple protection functions for safety and reliability
• Compatible with LED and LCD Program Box Pro/G2 for easy tuning

In the Box

• (1) FOC Motor with Built-in ESC and Factory-Installed XT60 Plug
• (1) Decal Sheet
• (1) Manual
• Heatshrink Kit, Double-Sided Tape, and Zip Ties
