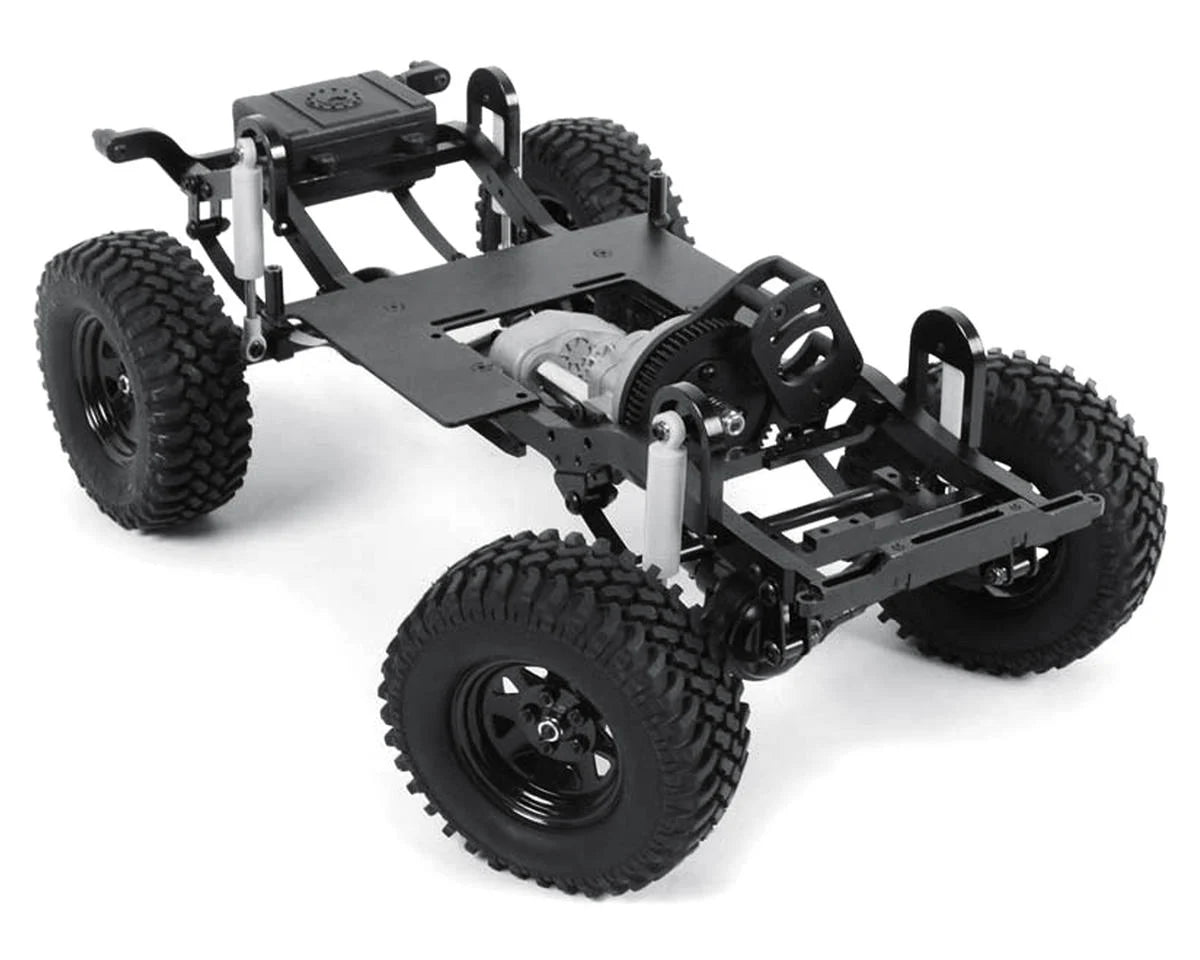

RC4WD Trail Finder 2 Truck "SWB" Short Wheelbase Chassis Kit

The RC4WD Trail Finder 2 Truck "SWB" Short Wheelbase Chassis Kit combines detailed styling and aggressive performance with a short wheelbase chassis to deliver the balance of capability and performance that scale enthusiasts demand. With its R3 single speed transmission, 4WD drivetrain, bulletproof transfer case, and quality metal components throughout, the TF2 SWB is a true work of art — on the shelf and on the trail.

Drivetrain

• Hammer Transfer Case — Cast metal exterior with 32P widened steel gears for maximum durability. Ratio: 1.47:1
• Cast Yota II Axles — The most scale-accurate axles on the market, featuring round knuckles, lower mounting points, and compact offset pumpkins. Ratio: 2.67:1 (15/40), Width at hex: 176.5mm
• R3 Single Speed Transmission — Cast aluminum case with wider gears, Delrin spur, and slipper clutch. Ratio: 1.78:1, Pinion/Spur: 14/64 (4.57:1)
• Metal Driveshafts — Bulletproof steel universals with high-quality plastic shaft for great driveline angles and trail durability

Suspension & Chassis

• RC4WD Ultimate Scale Shocks — Machined billet aluminum, internally sprung for ultimate scale looks and performance
• Billet Aluminum Ladder Frame "SWB" Chassis — Leaf spring suspension, scale shock hoops, chassis servo mounts, and hard body mounts. 4-link conversion available.
• 1.9 Black Stamped Steel Internal Beadlock Wagon Wheels — Black painted finish, aluminum internal ring, 5-lug design. Width: 25mm, Back spacing: 11mm
• Mud Thrashers 1.9 Scale Tires in X3 Compound — Maximum traction with perfect scale looks

Features

• Realistic Billet Aluminum Ladder Frame "SWB" Chassis
• R3 Single Speed Transmission
• Center Mounted Realistic 4x4 Transfer Case
• Yota II Ultimate Scale Cast Axle
• True to Scale Leaf Spring Suspension
• 5 Lug Wagon 1.9 Steel Stamped Beadlock Wheels (Black)
• Mud Thrashers 1.9 Scale Tires
• Realistic Bumpers and Skid Plate
• Chassis Mounted Steering Servo
• RC4WD Scale Shock Absorbers
• Plastic Rod Ends
• Full Ball Bearings

Specifications

• Wheelbase: 9.9 in / 242 mm
• Width: 8.3 in / 211 mm
• Height: 5.55 in / 141 mm
• Ground Clearance: 2.3 in / 58.5 mm
• Overall Length: 15.31 in / 389 mm
• Weight: 62.1 oz / 1.76 kg

Needed to Complete

• Motor (35t, 45t, or 55t)
• Electronic Speed Controller (ESC)
• Radio and Receiver (3 channel or more)
• Standard Size Steering Servo
• Battery — 6-Cell NiMH or comparable LiPo (consult ESC manual)
• Battery Charger
• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Compatible Tamiya Bodies

• Tamiya Jeep Wrangler Body (TAM9335171)
• Tamiya Wrangler M Parts (TAM9115239)
• Tamiya Jeep Wrangler L Parts (TAM9115238)
• Tamiya Jeep Wrangler K Parts (TAM9115062)
• Tamiya Jeep Wrangler H/J Parts (TAM9005439)
• Tamiya Jeep Wrangler Metal Parts Bag (TAM9400864)
• Clear Lexan Windshield for Tamiya Jeep Wrangler Body (RC4ZB0012)
